Waterproof Telephone YT203-LCD-AL
- Aluminum alloy die-casting enclosure
- Protection level IP68
- HD calls with advanced noise cancellation
- Corrosion-resistant coating
- CE, FCC, RoHS, IK10, IP68, ISO9001 standards
Main Features
Designed by extreme environments, The telephone adopted a robust die-cast aluminum shell with a weatherproof, polyurethane-coated enclosure.
It is adapt to harsh conditions such as high humidity, dust,shock, vibration,saltwater, and physical abuse.
Very suitable for outdoor and industrial application, including highways, tunnels, wind farms, production areas, chemical, Power plants, and heavy machinery like container cranes and ship loaders.
- Handset made from PC and ABS composite materials
- Includes a tensile steel rope with over 200KG strength
- Industrial-Grade Keyboard: Highly corrosion resistant
- External Speaker can increases ringing volume to 110 dB and can broadcast messages
- The handset supports hearing aid compatibility (HAC)
- Magnetic reed hook switch to reduce wear-prone parts
- With magnetic gravity door cover,supports wall mounting with mounting bar
Applications

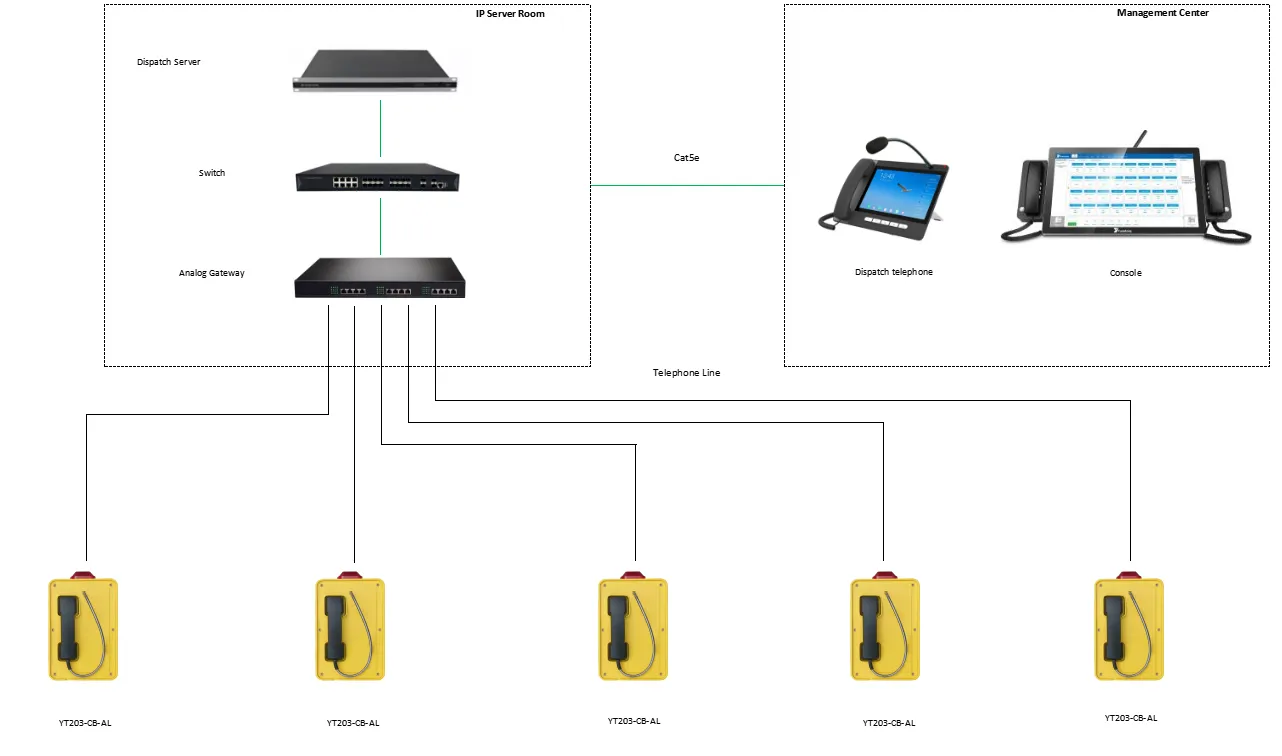

Analog telephone connects to Analog Gateway, converts analog signal to SIP signal, and is applied in SIP-based systems.
Product Video
Technical Specifications
| Basic Features | |
| Waterproof Rate | IP68 |
| Ringing Sound Level | ≥80 db at 1 meter with Flashlight |
| External Speaker | >110 db at 1 meter ( optional) |
| Noise cancellation | Optional |
| Full-duplex communication | Support |
| Enclosure Material | Aluminium alloy die-casting Powder coating treatment Outdoor UV protection |
| Color | Yellow ( default) |
| Handset | ABS+PC, stainless steel armored telephone cable |
| LCD display | Show telephone IP address and caller ID |
| Kepad | Industrial Silicone Keys with fluorescence |
| Fast Dial | S1、S2、S3 |
| Power supply | DC 12 V/2A or Switch output: 33-60V |
| Power consumption | Standby:1.5W, Working power: 3W (without external speaker) |
| Working temperature | Operating temperature: -40°C to + 70°C Storage temperature: -40°C to +75°C |
| Mean Time Between Failures | More than 50,000 hours |
| Analogue Features | |
| Communication distance | 3km |
| Signal Level Standard Frequency | Low Frequency Group: 697-941 Hz High Frequency Group: 1209-1477 Hz Frequency Deviation: No more than ±1.5% Level Difference Between Low and High Frequency Signals: 2 ± 1 dB Total Distortion Due to Harmonic Intermodulation: At least 20 dB lower than the basic level |
| Wiring Method | Twisted pair telephone line |
Product Application
Maritime
Highway / Tunnel
Railway
Power - Station
Mining industry
Industrial park
Dimensions
| Package | |
| Unit size | 334*254*115(mm) |
| Packaging materials | corrugated box, pearl cotton lining |
| Weight | Net weight : about 5 KG / Gross Weight :6 KG |
