Telephone Accessories YTSP-01-SIP
- Aluminum alloy + plastic enclosure
- Protection level IP66
- Corrosion-resistant coating
- HD High, medium and low tones
- ISO9001 standards
Main Features
The horn speaker adopts aluminum alloy shell material, weatherproof design, and full-range speaker unit. It is a weatherproof broadcast alarm horn speaker installed in outdoor area for broadcast sound amplification and emergency alarm.
The horn speaker has a reasonable structural design and beautiful appearance, which can effectively resist dust pollution and humid air.
This product complies ISO 9001 and reach IP66 which is suitable for non-explosion area.
- Support local line input for local amplification.
- Support the platform or management machine to send scheduled tasks to the device, and the scheduled task audio can be played even when the network is disconnected.
- In the LAN environment, support the sending of offline broadcast tasks through HTTP API.
- In the public network environment, support the sending of offline broadcasts through SIP Message.
- The device supports configuring scheduled tasks through the Web. It can also be used as a stand-alone device when there is no management machine or platform.
- Supports web-based system configuration, network configuration, system maintenance and other operations.
- Standard RJ45 network interface, which can be accessed anywhere with an Ethernet port, supports cross-segment and cross-route.
Applications
IP sound column broadcasting system is an audio broadcasting system based on IP network technology. It transmits audio signals through the network, can realize remote control and centralized management, can effectively meet the needs of intelligent broadcasting, and can perform zone broadcasting, paging broadcasting, timed broadcasting, triggered broadcasting, emergency light explosion and other functions in various places.
Product Video
Technical Specifications
| Basic Features | |
| Waterproof Rate | IP66 |
| Ringing Sound Level | ≥110 db at 1 meter |
| Frequency response | 350HZ—8KHZ |
| Enclosure Material | Plastic enclosure Powder coating treatment Outdoor UV protection |
| Color | White ( default) |
| Power rate | 30W |
| Audio constant voltage | 70V/100V |
| Constant resistance | 8Ω或16Ω |
| Power supply | DC24V |
| Installation method | Wall-mounted |
| Working temperature | Operating temperature: -20°C to + 50°C Storage temperature: -30°C to +60°C |
| Humidity range | less than 95%. |
| VoIP Features | |
| Chips | Industrial-grade dual-core ARM+DSP chip, startup time ≤1 s |
| SIP | Support |
| Protocol | TCP/IP 、UDP 、ARP 、ICMP 、SIP 、IGMP 、ONVIF |
| Network chip rate | 10/100 Mpbs |
| Audio sampling , bit rate | 8Khz ~ 44.1Khz , 16bit |
| Interface | RJ45 |
Product Application
Maritime
Highway / Tunnel
Railway
Power - Station
Mining industry
Industrial park

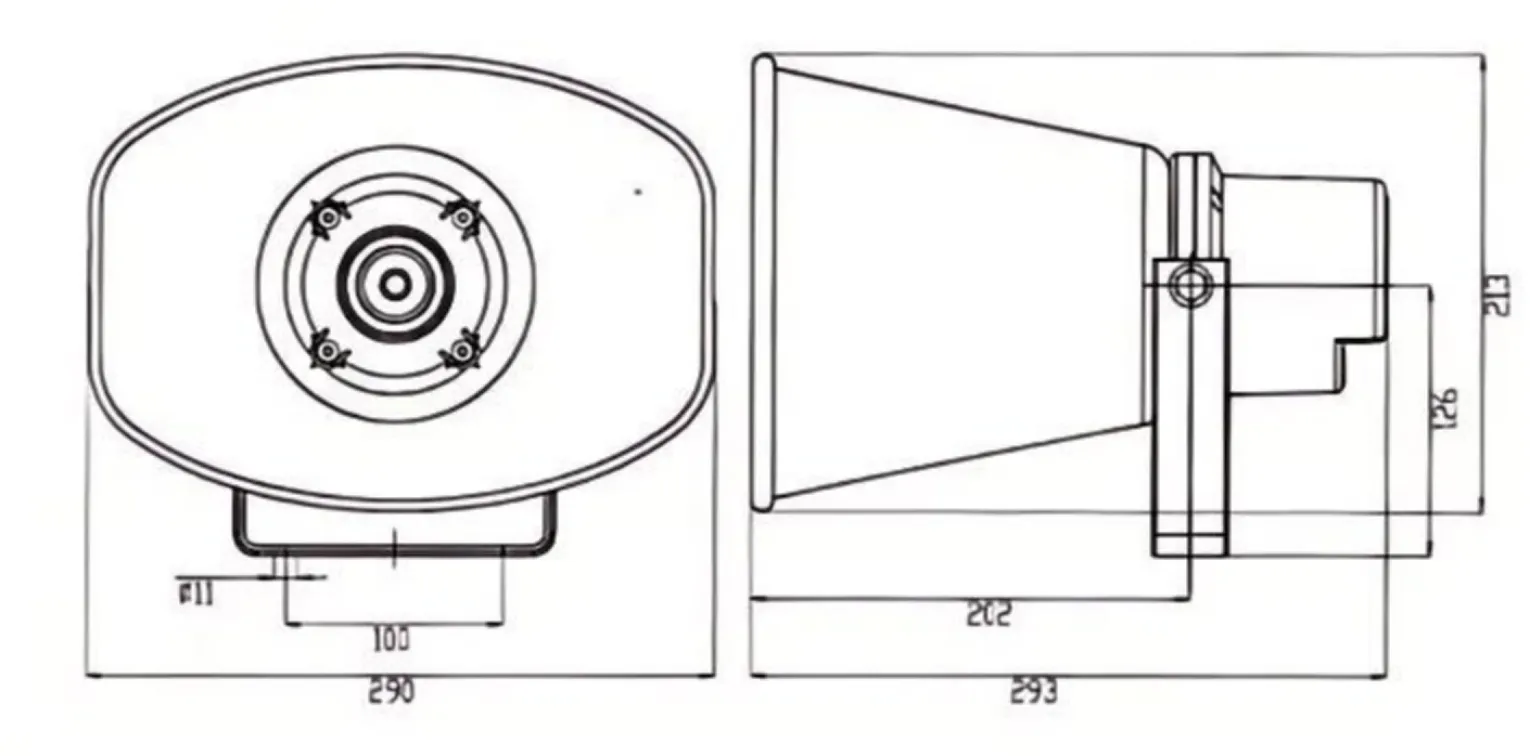

Dimensions
| Package | |
| Unit size | 290*213*293(mm) |
| Packaging materials | corrugated box, pearl cotton lining |
| Weight | Net weight : about 2 KG / Gross Weight :3 KG |
