Telephone Accessories YTEX-HSP-AL
- Aluminum alloy die-casting enclosure
- Protection level IP66
- Corrosion-resistant coating
- HDHigh, medium and low tones
- ISO9001 standards
Main Features
The explosion-proof horn speaker adopts aluminum alloy shell material, explosion-proof design, and full-range speaker unit. It is an explosion-proof broadcast alarm sound column installed in flammable and explosive areas for broadcast sound amplification and fire alarm.
The explosion-proof horn speaker has a reasonable structural design and beautiful appearance, which can effectively resist dust pollution and humid air.
This product complies with GB3836.1-2000 "General Requirements for Explosion-proof Electrical Equipment for Explosive Environments" and GB3836.2-2000 "Explosion-proof Electrical Equipment for Explosive Environments Flameproof Type "d"" standards.
The product explosion-proof grade reaches Ex db IIC T6 Gb standard, which is suitable for flammable and explosive places such as mining, petroleum, chemical, electric power, oil depots, etc.
- Aluminum Alloy Material: corrosion resistance surface treatment, and strong durability.
- Protection Capability: IP66 waterproof and dustproof, adaptable to harsh environments.
- Audio Adaptation: Supports 70V/100V constant voltage input with multiple power options.
- Electroacoustic Characteristics: High sensitivity (≥110dB), clear sound, and wide coverage.
- Installation and Maintenance: Equipped with standard accessories, easy to install, and components are easy to replace.
Applications

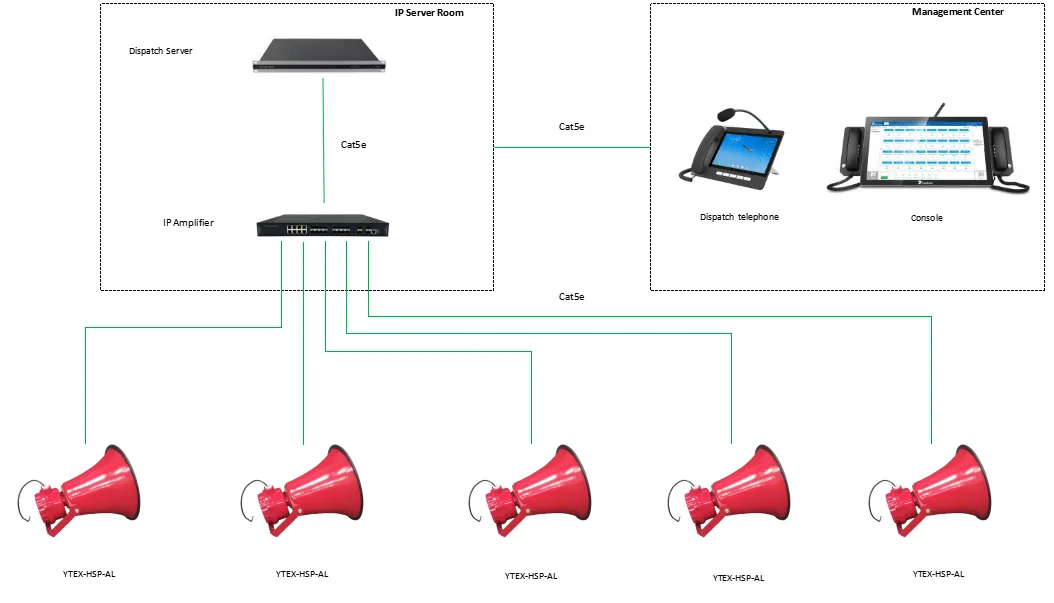

IP sound column broadcasting system is an audio broadcasting system based on IP network technology. It transmits audio signals through the network, can realize remote control and centralized management, can effectively meet the needs of intelligent broadcasting, and can perform zone broadcasting, paging broadcasting, timed broadcasting, triggered broadcasting, emergency light explosion and other functions in various places.
Product Video
Technical Specifications
| Basic Features | |
| Ex mark | Ex db IIC T6 Gb/Ex tb ib lllC T80C Db |
| Waterproof Rate | IP66 |
| Ringing Sound Level | ≥115 db at 1 meter |
| Frequency response | 300HZ—8KHZ |
| Speaker inside | 1 high tone speaker + 3 for high, medium and low tones |
| Enclosure Material | Aluminium alloy die-casting Powder coating treatment Outdoor UV protection |
| Color | Silver ( default) |
| Power rate | 30W |
| Audio constant voltage | 70-120V |
| Constant resistance | 4-16 Ω |
| Power supply | DC24V |
| Inlet thread size | G1/2 |
| Installation method | Wall-mounted |
| Working temperature | Operating temperature: -20°C to + 50°C Storage temperature: -30°C to +60°C |
| Humidity range | less than 95%. |
Product Application
Maritime
Highway / Tunnel
Railway
Power - Station
Mining industry
Industrial park
Dimensions
| Package | |
| Unit size | 330*300*300cm |
| Packaging materials | corrugated box, pearl cotton lining |
| Weight | Net weight : about 3 KG / Gross Weight :4 KG |
