Waterproof Telephone YT-611-AL
- Aluminium alloy die-casting enclosure
- Protection level IP66
- HD calls with advanced noise cancellation
- ISO9001 standards
Main Features
Designed by extreme environments, The telephone adopted a polyester shell with a weatherproof, polyurethane-coated enclosure.
It is adapt to harsh conditions such as high humidity, dust,shock, vibration,saltwater, and physical abuse.
Very suitable for outdoor and industrial application, including highways, tunnels, wind farms, production areas, chemical, Power plants, and heavy machinery like container cranes and ship loaders.
- Enclosure made from die-casting aluminium alloy
- ABS+PC+Magnet vandal resistant telephone handset
- Stainless Steel Keyboard: Highly corrosion resistant
- 8 analog telephones compatibility
- HD clear sound, and nosie cancallation
- External Speaker can increases ringing volume to 110 dB and can broadcast messages
- Working voltage: support POE or DC12V

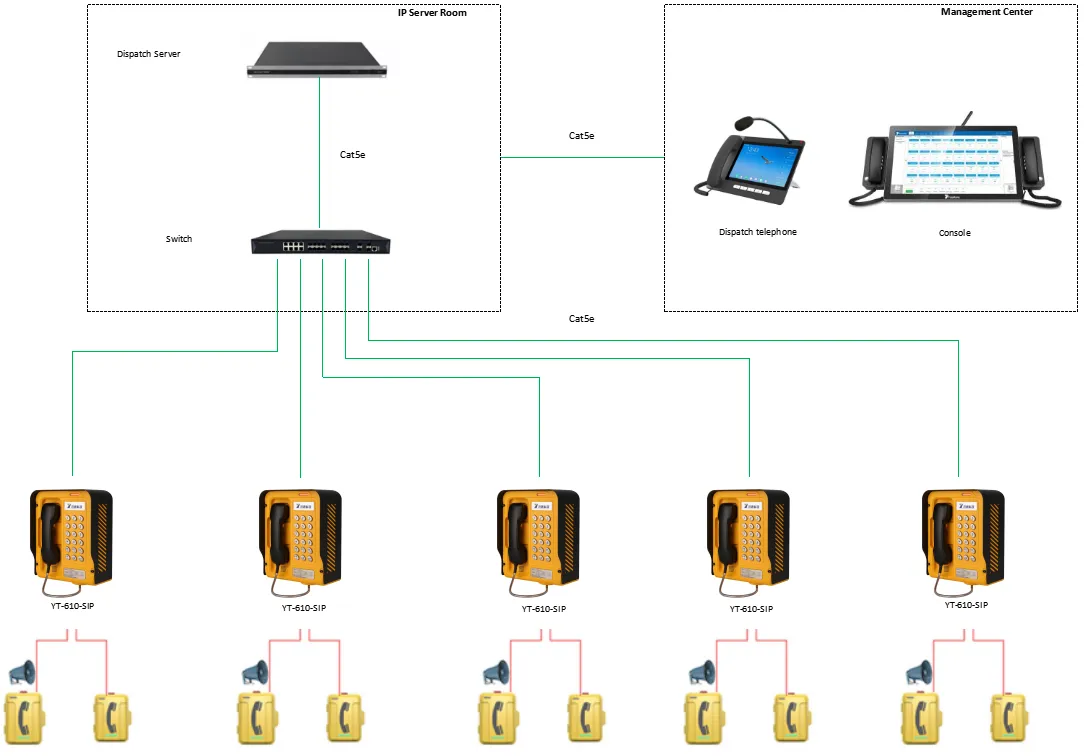

Applications
IP telephone system is an efficient and convenient communication solution that utilizes an Internet connection to enable voice calls and other communication services. Compared to traditional telephone systems, IP telephone offers greater efficiency and flexibility.
Product Video
Technical Specifications
| Basic Features | |
| Waterproof Rate | IP66 |
| Ringing Sound Level | ≥80 db at 1 meter |
| External Speaker | >110 db at 1 meter ( optional) |
| Noise cancellation | Optional |
| Full-duplex communication | Support |
| Enclosure Material | Aluminium Alloy |
| Color | Orange ( default) |
| Handset | ABS+PC+Magenet |
| Keypad | Stainless Steel full number keys with 6 speed dial keys |
| Cable Connection | Fiber Optical and Rj45 |
| Power supply | DC 12 V/2A or POE |
| Analog telephone compiatibility | 8 units |
| Power consumption | Standby:1.5W, Working power: 3W (without external speaker) |
| Working temperature | Operating temperature: -40°C to + 70°C Storage temperature: -40°C to +75°C |
| Mean Time Between Failures | More than 50,000 hours |
| VoIP Features | |
| Protocol | SIP 2.0(RFC3261) |
| Codec | G.711A/u, G.7231 high/low, G.729, G.722,G.726 |
| Echo cancellation | Support G.168, Hands-free :max 96 millisecond |
| Network | 10/100 Mpbs WAN/LAN: Support bridge mode Support virtual LAN Support stun NAT penetration |
Product Application
Maritime
Highway / Tunnel
Railway
Power - Station
Mining industry
Industrial park
Dimensions
| Package | |
| Unit size | 340*170*140(mm) |
| Packaging materials | corrugated box, pearl cotton lining |
| Weight | Net weight : about 8 KG / Gross Weight :10 KG |
